FCB-2060B
| Applicable Chips
Scraper type for powders and tiny chips, such as casting iron chips.
| Features
> Specially designed for chip removal.

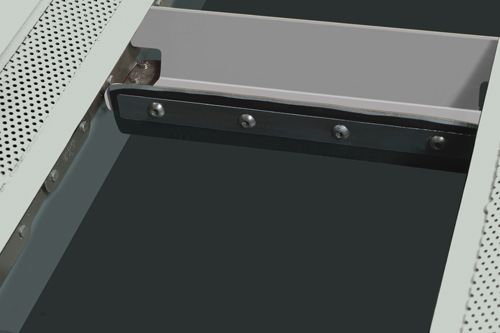

> The scraper chip conveyor is made with high tension.
> This model applies to non-scrolled type chips, such as casting iron chips.
> This model can be matched with various machine tools, machining centers, drills, planer type milling machines, gear machines and other dedicated machinery.
> CE approved.
> The scraper chip conveyor is made with high tension.
> This model applies to non-scrolled type chips, such as casting iron chips.
> This model can be matched with various machine tools, machining centers, drills, planer type milling machines, gear machines and other dedicated machinery.
> CE approved.

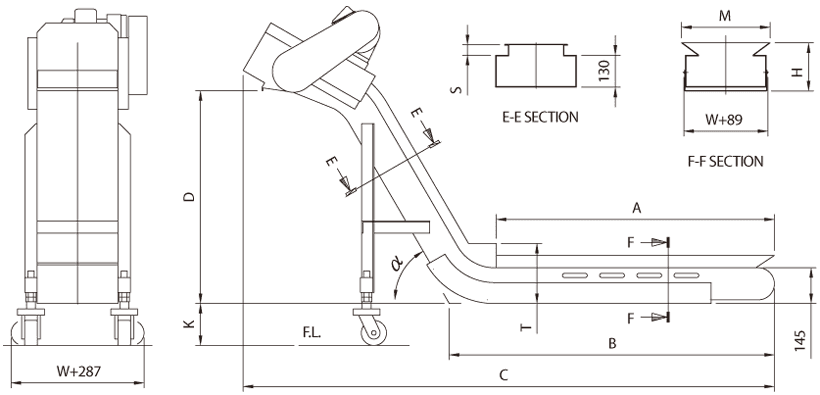

| Pitch:38.1mm Frame:3mm |
| Option w □100 □125 □150 □175 □200 □225 □250 □275 □300 □325 □350 □375 □400 □425 □450 □475 □500 □525 □550 □575 □600 □625 □650 □675 □700 □725 □750 □775 □800 a □30° □45° □60° |
| Customization Fill in Blank_______Unit A ________________ mm B ________________ mm C ________________ mm D ________________ mm K ________________ mm T ________________ mm H ________________ mm M ________________ mm S _______42_______ mm HP _______________ mm Max. Removal Load ________________ kg/hr Max. Flow Rate ________________ l/min |
